GLP...F7D7 Flange Freewheel Bearing Backstop Clutch GLP30F7D7

Name: GLPF7D7 Flange Freewheel Bearing Backstop Clutch GLP30F7D7
Brand: SUMA
Price: 80 USD

Wholesale GLP...F7D7 Flange Freewheel Bearing Backstop Clutch GLP30F7D7 from china suppliers

Brand Name : SUMA

Model Number : GLP30F7D7

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD80-USD120 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-15 Days

Packaging Details : Carton Box / Wooden Box

Product Name : Cam Clutch Bearing GL12 GLP12

Bearing Supported : YES

Material : Bearing Steel GCr15

Size : 12*62*42mm

Torque capacity : 55Nm

Warranty : 1 Year

Package : Carton Box / Wooden Box

Weight : 0.5Kg

Contact Now

GLP...F7D7 Flange Freewheel Bearing Backstop Clutch GLP30F7D7

Features

GL type freewheels have 160.. Series ball bearings that are used to center the inner race with the outer race. the torque forces are transmitted from the shaft to the inner race by means of the key and from the outer race to the external area by means of screws. shaft tolerances must be h6 or j6 and outer race key tolerances h7. either grease or oil lubrication must be applied to the freewheels before operation, following instructions given on page 12. Each freewheel is supplied with two paper gaskets that must be inserted between the outer race and the flanges. If they are not used, the freewheel could be badly damaged.

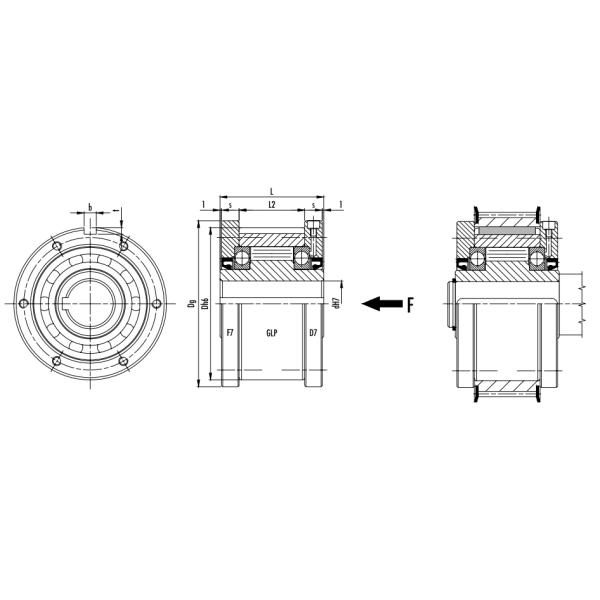

Dimensions and Capacities

Model No.	dH7	Dh6	L	L2	s	Dg	bH8	t	Rotation Speed		Torque	Weight
Model No.	mm	mm	mm	mm	mm	mm	mm	mm	Inner race	Outer race	Nm	Kg
GLP 12 F7-D7	12	62	42	20	10	70	4	2	4000	5600	55	1
GLP 15 F7-D7	15	68	52	28	11	76	5	3	3700	5300	125	1.4
GLP 20 F7-D7	20	75	57	34	10.5	84	6	3.5	2700	4600	181	1.9
GLP 25 F7-D7	25	90	60	35	11.5	99	8	4	2200	3600	288	2.8
GLP 30 F7-D7	30	100	68	43	11.5	109	8	4	1800	3300	500	3.7
GLP 35 F7-D7	35	110	74	45	13.5	119	10	5	1500	3000	735	4.7
GLP 40 F7-D7	40	125	86	53	15.5	135	12	5	1200	2600	1040	7.1
GLP 45 F7-D7	45	130	86	53	15.5	140	14	5.5	1000	2400	1125	7.4
GLP 50 F7-D7	50	150	94	64	14	160	14	5.5	850	2200	2125	10.4
GLP 55 F7-D7	55	160	104	66	18	170	16	6	750	2000	2625	13.4
GLP 60 F7-D7	60	170	114	78	17	182	18	7	650	1900	3500	15.9
GLP 70 F7-D7	70	190	134	95	18.5	202	20	7.5	550	1700	5750	20.8
GLP 80 F7-D7	80	210	144	100	21	222	22	9	500	1600	8500	27.1
GLP 90 F7-D7	90	230	158	115	20.5	242	25	9	450	1500	14500	40
GLP 100 F7-D7	100	270	182	120	30	282	28	10	350	1250	20000	67
GLP 120 F7-D7	120	310	202	140	30	322	32	11	300	1100	25000	82
GLP 130 F7-D7	130	310	212	152	29	322	32	11	250	1000	31250	94
GLP 150 F7-D7	150	400	246	180	32	412	36	12	200	800	70000	187

GLP...F7D7 Flange Freewheel Bearing Backstop Clutch GLP30F7D7
