Name: Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings
Brand: SUMA
Price: 32 USD

Brand Name : SUMA

Model Number : Any size

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 5000

Price : USD32-USD35 PER 10000 PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-15 Days

Packaging Details : Carton Box / Wooden Box

Product Name : Sprag Roller

Material : Bearing Steel GCr15 / SS Material

Size : 5*25 6*5

Warranty : 3 Months

Package : Carton Box / Wooden Box

Tolerance : Standard

OEM : Accept

Contact Now

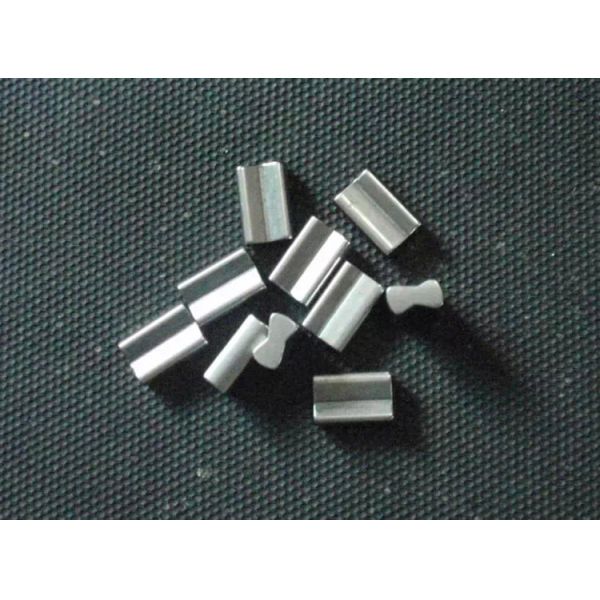

Special Sprag for One Way Clutch Bearings

Top characteristics of Sprag Roller

Sprag roller are widely uased on one way clutch bearings .

Name	Sprag for one way clutch bearing
Material	Bearing Steel GCR15
Hardness	HRC60-65
Bore Tolerance	±0.01mm
Length Tolerance	±0.05mm,±0.03mm
Chamfer	R0.10-R0.20mm
Parallelism	0.02mm,0.01mm
Verticality	0.02mm,0.01mm
Roughness	Ra0.2um,Ra0.1um

olecranon section	5.63.75(3.4-12MM) 5.022.77(4-12.9MM) 4.252.4(4-10MM)
figure eight section	8.454.5(4-13.5MM)
fan-shaped section	4.12.7(4-9.3MM) Grooving
Cut a single groove in the middle of the peach-shaped section, cut shoulders on both sides, etc.	Any shape can be customized according to customer's requirements

Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings
